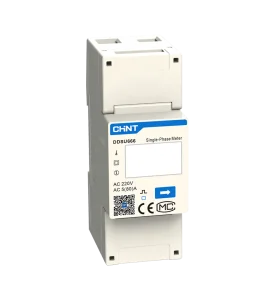

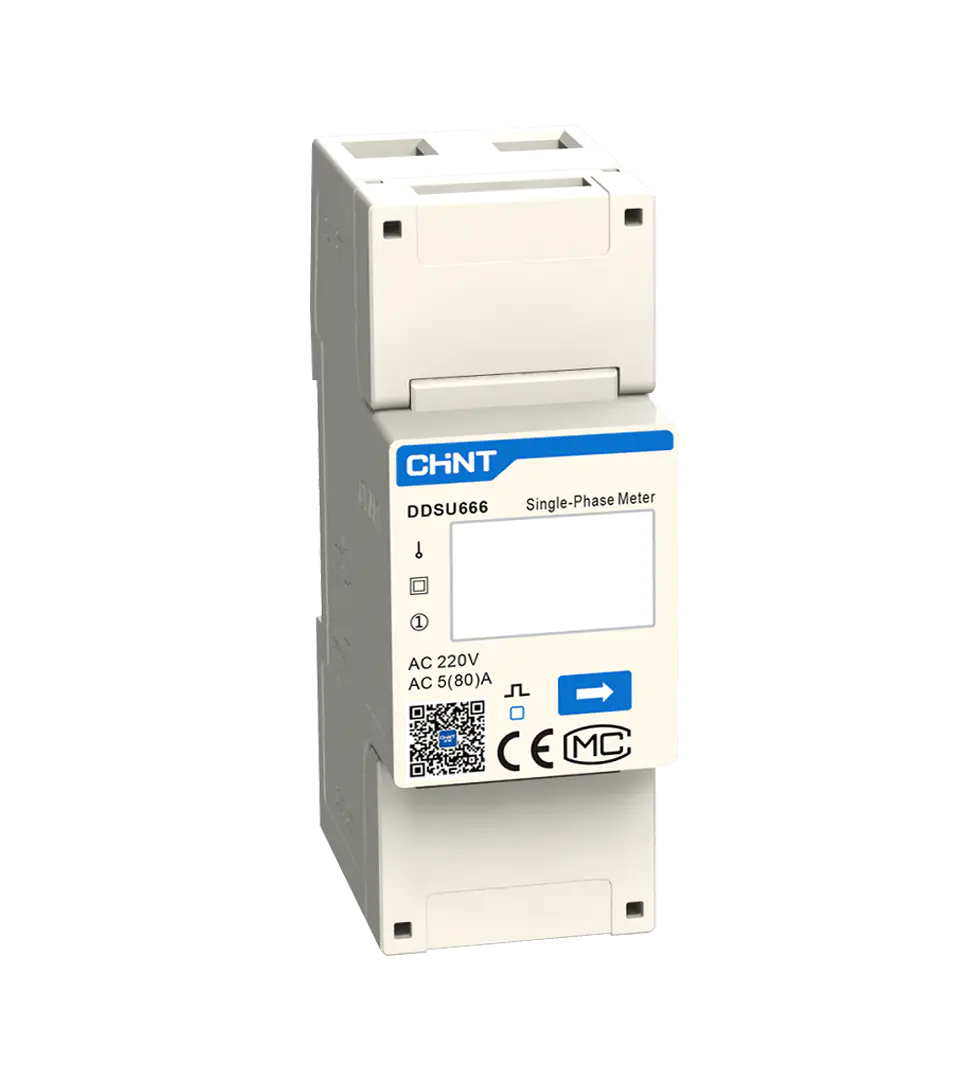

The DDSU666 Single-phase electronic type guide rail mounting electric energy meters. It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system. The DTSU666 series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.
- info@ solarpaynigeria.com
- +2348033212766
- 1B Ilorin Close, Area 8 Garki, Abuja, Nigeria
Product
Energy Meter
Specifications
- Local LCD display, RS485 communication
- Adopting the standard DIN35mm din rail mounting
- Small volume, easy installation and easy communication
- Positive and reverse active power, four quadrant reactive power metering
Technical specifications
| Model | SUN-EVSE11K01-EU-AC | SUN-EVSE22K01-EU-AC | ||
|---|---|---|---|---|
| Product Parameter | ||||
| Input Voltage/Range (V) | 230/400 | 230(single phase), 230/400(three phase) | ||
| Connection Mode | 3L+N+PE | L+N+PE,3L+N+PE | ||
| Input Current (A) | 16 | 32 | ||
| Input Frequency/Range | 50/45-55, 60/55-65 | |||
| Maximum Output Power (kW) | 11 | 7(single phase)/ 22(three phase) | ||
| Starting Method | Plug and Charge /Charge after Scanning/Scheduled Charging | |||
| Equipment Protection | ||||
| Over Temperature Protection | Yes | |||
| Low Temperature Protection | Yes | |||
| Over Voltage Protection | Yes | |||
| Under Voltage Protection | Yes | |||
| Short Circuit Protection | Yes | |||
| Over Load Protection | Yes | |||
| Earth Fault Protection | Yes | |||
| Leakage Current Protection | DC 6mA | |||
| Surge Protection Level | TYPE II | |||
| General Data | ||||
| Operating Temperature Range (°C) | -40 to +55 | |||
| Permissible Ambient Humidity | 5%~95% No condensation | |||
| Permissible Altitude (m) | <3000 | |||
| Noise (dB) | ≤25 | |||
| Ingress Protection(IP) Rating | IP 66 | |||
| Cabinet Size (WxHxD mm) | 104x264x57.5 | |||
| Weight (kg) | 3.7 | |||
| Gun Cable Length (m) | 4.2 | |||
| Number Of Charging Guns | 1 | |||
| Safety EMC/Standard | EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020 EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021, EN IEC | |||
| Interface | ||||
| Communication Mode | LoRa/Wi-Fi/BLE | |||
