EV Charger

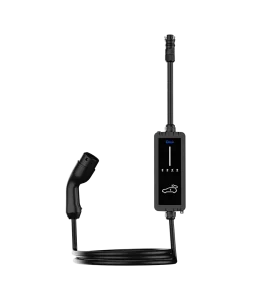

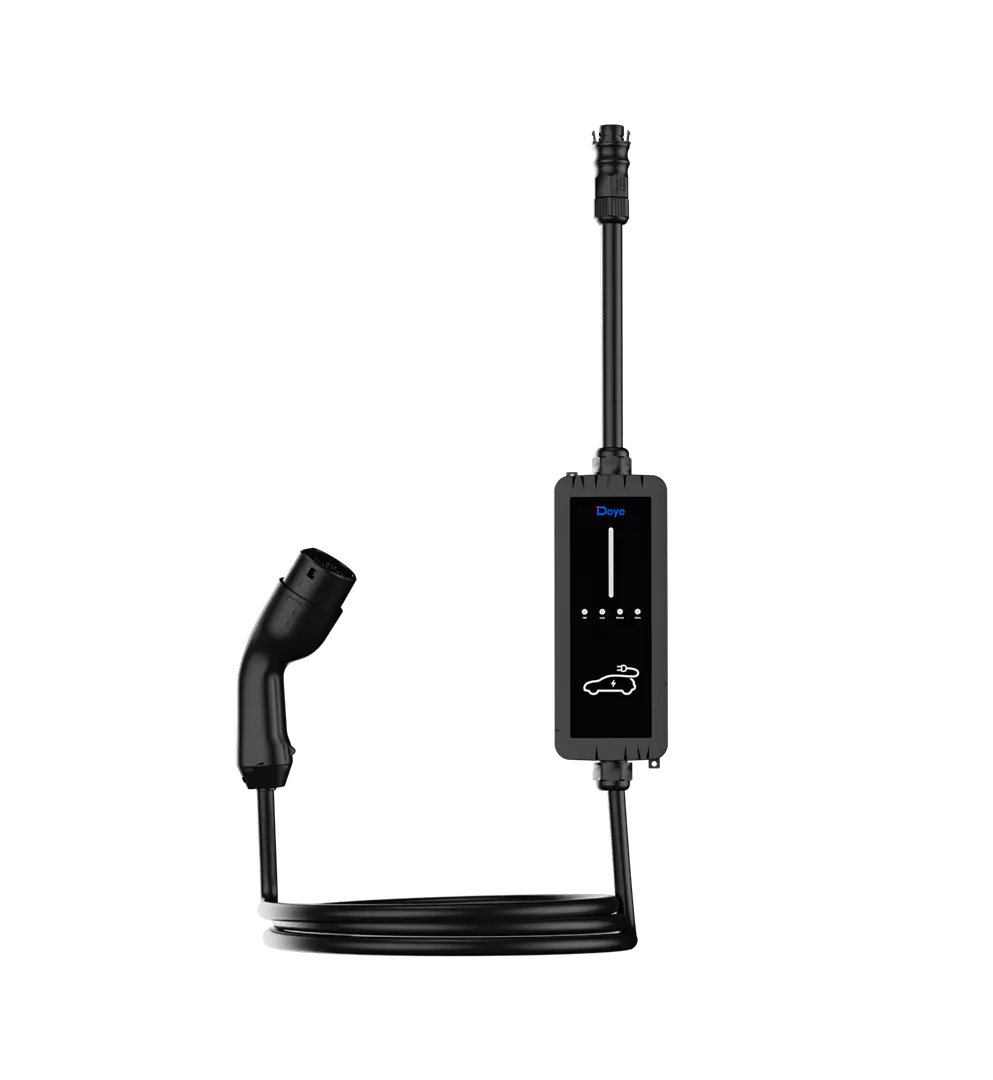

Deye Smart EV Charger can be directly connected to any AC port of the inverter and is controlled by the inverter via LoRa communication. It offers flexible options to take advantage of low-cost electricity, with modes such as Plug and Play, Time of Charge, or Solar Energy Only.

No content is added yet.
charder
charder

Specifications

  • Low latency
  • LoRa communication
  • Supports all Deye hybrid inverters
  • Maximize the use of solar power
  • Minimize the electricity bill as much as possibl

Technical specifications

Model SUN-EVSE11K01-EU-AC SUN-EVSE22K01-EU-AC
Product Parameter
Input Voltage/Range (V)230/400230(single phase), 230/400(three phase)
Connection Mode3L+N+PEL+N+PE,3L+N+PE
Input Current (A)1632
Input Frequency/Range50/45-55, 60/55-65
Maximum Output Power (kW)117(single phase)/ 22(three phase)
Starting MethodPlug and Charge /Charge after Scanning/Scheduled Charging
Equipment Protection
Over Temperature ProtectionYes
Low Temperature ProtectionYes
Over Voltage ProtectionYes
Under Voltage ProtectionYes
Short Circuit ProtectionYes
Over Load ProtectionYes
Earth Fault ProtectionYes
Leakage Current ProtectionDC 6mA
Surge Protection LevelTYPE II
General Data
Operating Temperature Range (°C)-40 to +55
Permissible Ambient Humidity5%~95% No condensation
Permissible Altitude (m)<3000
Noise (dB)≤25
Ingress Protection(IP) RatingIP 66
Cabinet Size (WxHxD mm)104x264x57.5
Weight (kg)3.7
Gun Cable Length (m)4.2
Number Of Charging Guns1
Safety EMC/StandardEN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020 EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019 EN IEC 61000-6-3:2021, EN IEC
Interface
Communication ModeLoRa/Wi-Fi/BLE
