Product

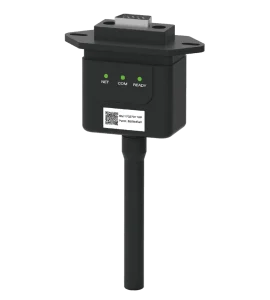

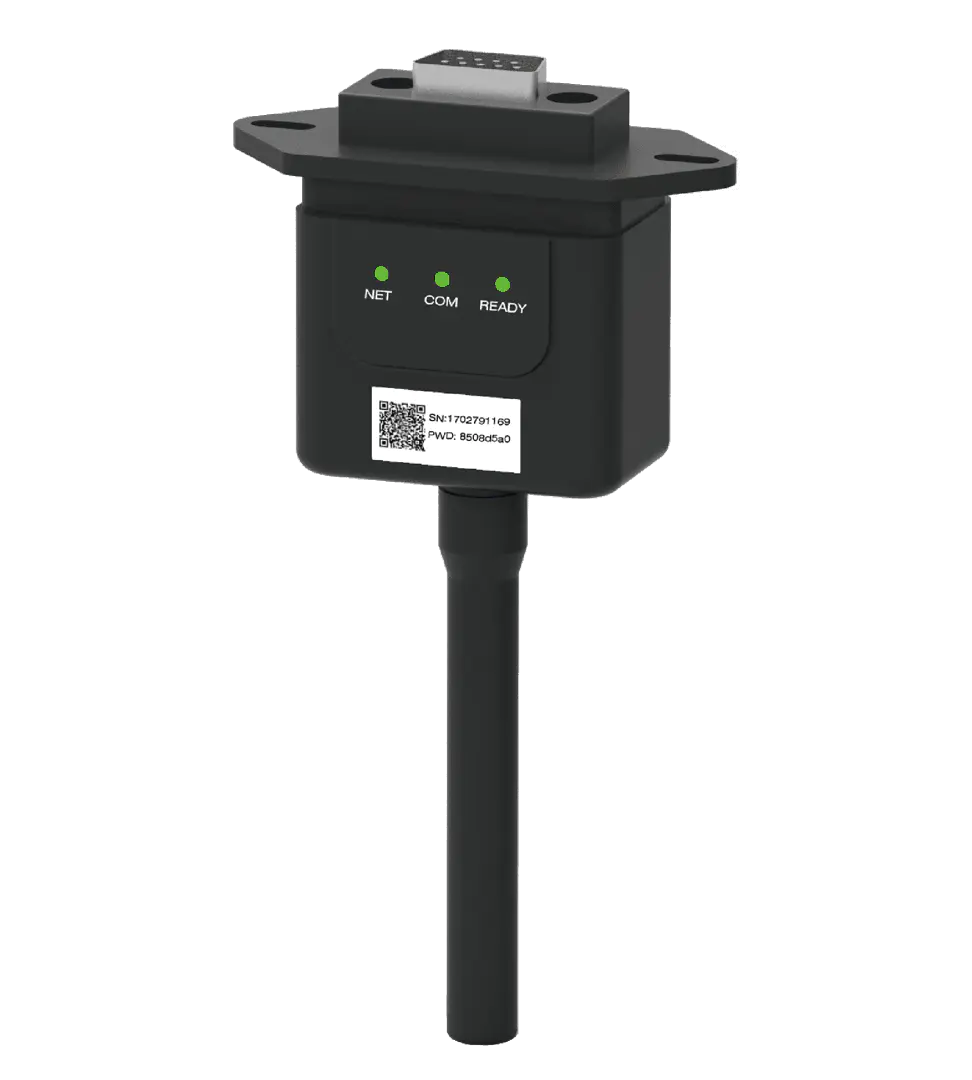

Stick Logger
Stick logger supports GPRS, WIFI, 4G, Ethernet and other communication modes. Its bluetooth function enables local debugging configuration to collect operation and power generation data from inverters.It pairs with solarman professional platform to enable remote PV system monitoring and to realize distributed power station management with lower cost and higher efficiency.
Specifications
- External light indicator, logger status at a glance;
- Plug & play, pick power within inverter, no external power needed, easy to install;
- Independent from inverter to protect parts inside inverter, eliminate potential problems;
- IP65 water-proof design, resistant to bad weather, enhance stability;
- External design, easier to replace faulty equipment;
Technical specifications
| Product Models | LSG-3 | LSG-4 | LSW-3 | LS4G-3 | LSE-3 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Remote Communication Interface | GPRS | GPRS | WiFi | 4G | LAN | |||||
| Working Frequency | GSM850 / EGSM900 / DCS1800 / PCS 1900MHz | GSM850 / EGSM900 / DCS1800 / PCS 1900MHz | 2.142GHz~2.484GHz | 704MHZ-960MHZ 1710MHZ-2690MHZ | Adaptive Network; 10M / 100M | |||||
| Satellite Positioning | / | GPS / Beidou ＜15m | / | / | / | |||||
| Antenna | External GPRS Stick Antenna | External GPRS Stick Antenna | External WiFi Stick Antenna | External 4G Stick Antenna | / | |||||
| Data Interface | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL | RS485 / RS232 / TTL | |||||
| Working Voltage | DC4.7V~DC15V | DC4.7V~DC15V | DC4.7V~DC15V | DC4.7V~DC15V | DC4.7V~DC15V | |||||
| Working Power | 3W | 3W | 1.5W | 5W | 1W | |||||
| SIM Card | Chip Card / MicroSIM | Chip Card / MicroSIM | / | MicroSIM | / | |||||
| Memory | 2M Flash (2M-16M Optional) | 2M Flash (2M-16M Optional) | 2M Flash (2M-16M Optional) | 2M Flash (2M-16M Optional) | 2M Flash (2M-16M Optional) | |||||
| Working Temperature | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ | |||||
| Working Humidity | ＜90% (No Condensing) | ＜90% (No Condensing) | ＜90% (No Condensing) | ＜90% (No Condensing) | ＜90% (No Condensing) | |||||
| No.of Connections | One | One | One | One | One | |||||
| Serial Communication Rate | bps (1200-115200bps Configurable) | bps (1200-115200bps Configurable) | bps (1200-115200bps Configurable) | bps (1200-115200bps Configurable) | bps (1200-115200bps Configurable) | |||||
| Data Acquisition Interval | Default 5min (1-15min Configurable) | Default 5min (1-15min Configurable) | Default 5min (1-15min Configurable) | Default 5min (1-15min Configurable) | Default 5min (1-15min Configurable) | |||||
| User Configuration | AT+InstructionSet | AT+InstructionSet | AT+InstructionSet | AT+InstructionSet | AT+InstructionSet | |||||
| User Configuration | Remote Server | Remote Server | Remote Server | Remote Server | Remote Server | |||||
| User Configuration | Bluetooth | Bluetooth | APP/Web | Local Serial Port | Web | |||||
| Firmware Upgrade | Remote Upgrade | Remote Upgrade | Remote Upgrade | Remote Upgrade | Remote Upgrade | |||||
| Others | Real-time Control, Data resuming | Real-time Control, Data resuming | Real-time Control, Data resuming | Real-time Control, Data resuming | Real-time Control, Data resuming | |||||
